6V, 3Ah LFP Battery (PVC, BLF-0603W)

BLF-0603W User Manual | Material Safety Data Sheet for LiFePO4



< data-start="204" data-end="207">

Product Overview

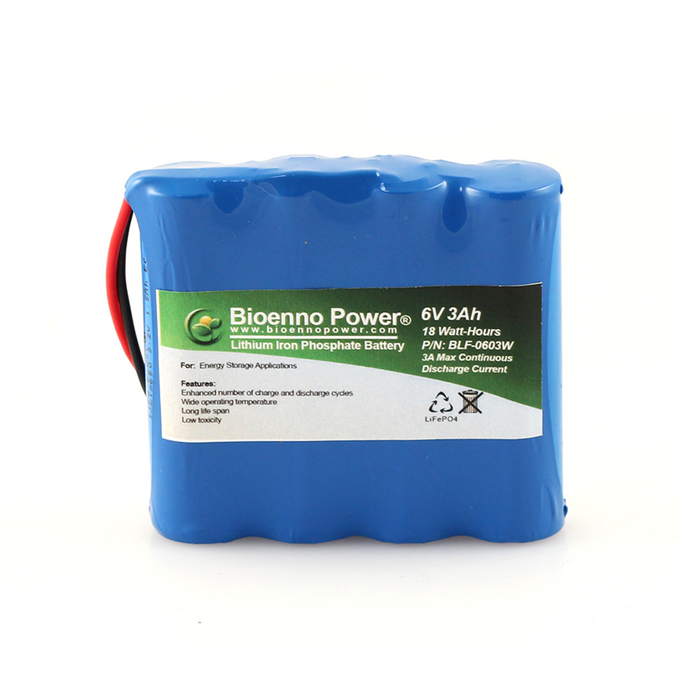

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-0603W is a compact, specialty 6V 3Ah battery designed for low-voltage applications. Ideal for use in sensors, emergency lighting, and small electronic devices, this battery delivers reliable performance in a lightweight PVC pack.

Built with an integrated PCM (protection circuit module), the BLF-0603W safeguards against overcurrent, overvoltage, undervoltage, and short circuits. This unit is compatible with a 110VAC charger and is optimized for safety, longevity, and easy integration into various systems.

< data-start="817" data-end="820">

Key Features

1. Low Voltage, High Reliability

• Voltage: 6V

• Capacity: 3Ah

• Continuous Discharge: 3A

• Peak Discharge: 6A (5 sec)

• Max Power Output: 18 Watts

• Case Type: PVC Pack

• Dimensions: 2.8 in. x 2.7 in. x 0.7 in. (70 mm x 67 mm x 16 mm)

• Weight: 0.4 lbs. (0.2 kg)

• Charge Connector: DC Barrel Plug

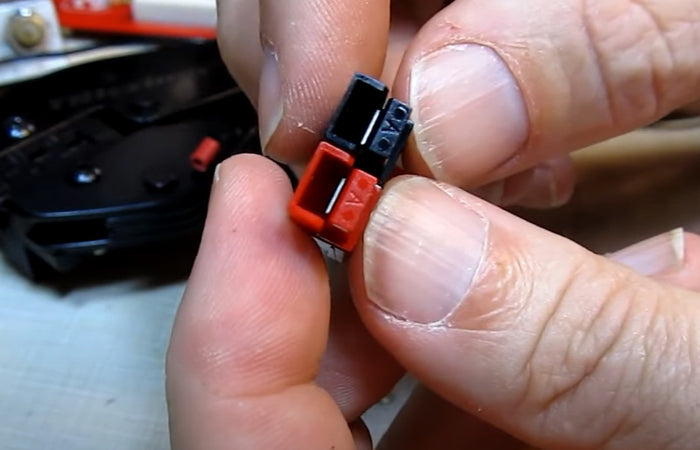

• Discharge Connector: Anderson Powerpole

2. Built-in Protection Circuitry

• Integrated PCM for internal cell balancing

• Protection against overcurrent, overvoltage, and overdischarge

• Safe, quiet, and efficient performance

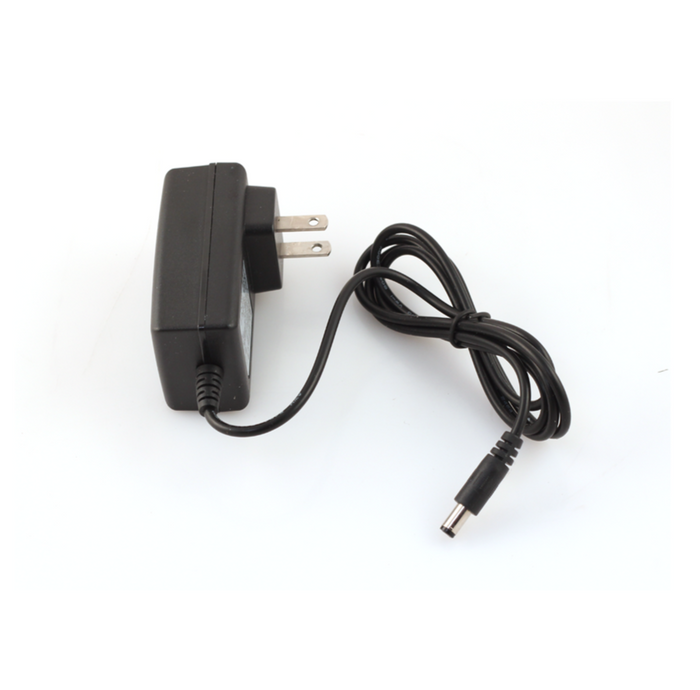

3. Optional Charger Available

• Input: 110VAC

• Output: 7.4VDC at 1A

• Model Number: BPC-0602DC

< data-start="1512" data-end="1515">

Ideal For

• Sensors

• Emergency lighting

• Compact electronic systems

• Educational and research projects requiring low-voltage power
