Product Overview

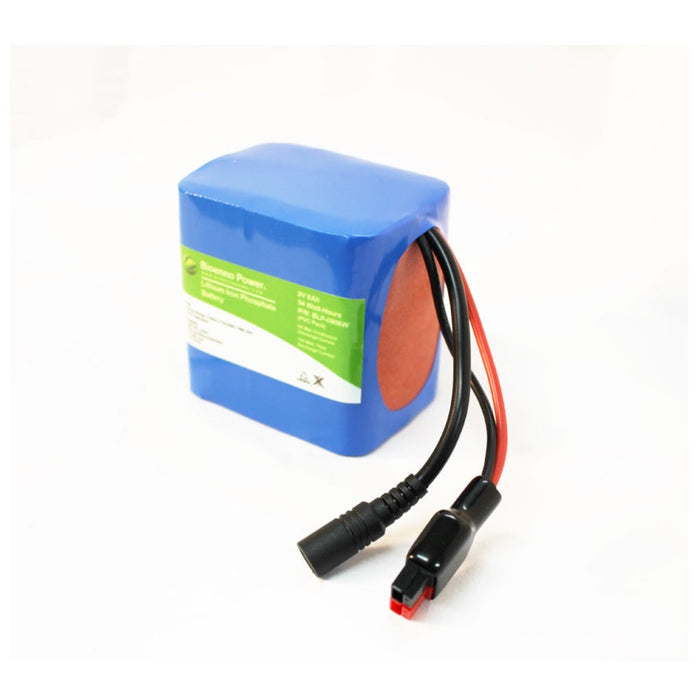

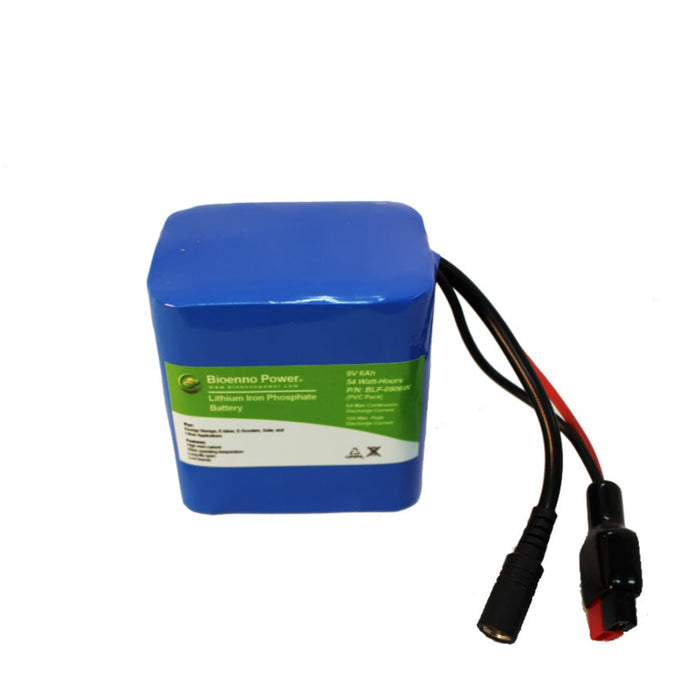

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-0906W is a compact 9V 6Ah battery tailored for low-voltage applications such as emergency lighting, sensors, and small electronics. Engineered for dependability and efficiency, this unit features built-in protection and lightweight construction in a PVC pack.

This battery includes a Protection Circuit Module (PCM) for automatic balancing and safeguards against overcurrent, overvoltage, overdischarge, and short circuit conditions. A compatible 110VAC charger is available to support safe and optimal charging performance.

< data-end="852" data-start="849">

Key Features

1. Reliable Power for Compact Systems

• Voltage: 9V

• Capacity: 6Ah

• Max Continuous Discharge: 6A

• Peak Discharge: 12A (5 sec)

• Max Power Output: 54 Watts (9V x 6A)

• Case: PVC Pack

• Dimensions: 2.9 in. x 2.7 in. x 2 in. (73 mm x 67 mm x 51 mm)

• Weight: 1.2 lbs. (0.5 kg)

• Charge Connector: DC Barrel Plug

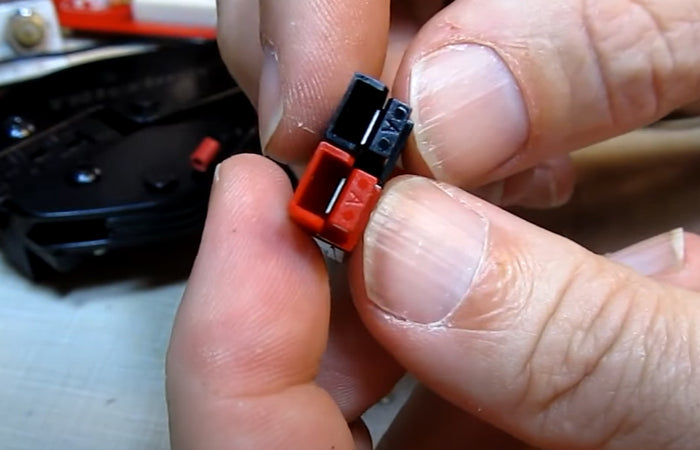

• Discharge Connector: Anderson Powerpole

2. Built-in Safety & Protection

• Integrated PCM

• Provides protection against overcurrent, overvoltage, and overdischarge

• Quiet, efficient, and safe performance

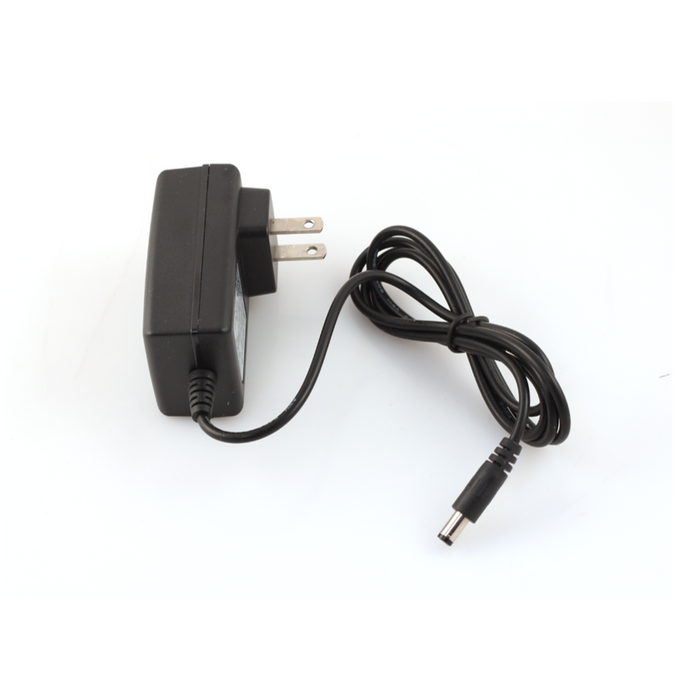

3. Optional AC-to-DC Charger Available

• Input Voltage: 110VAC

• Output Voltage: 10.8VDC

• Output Current: 0.7A

• Additional Chargers

< data-end="1552" data-start="1549">

Applications

• Emergency backup lighting

• Environmental sensors

• Small-scale electronics

• Low-voltage scientific equipment
