B-SB120

Material Safety Data Sheet



Product Overview

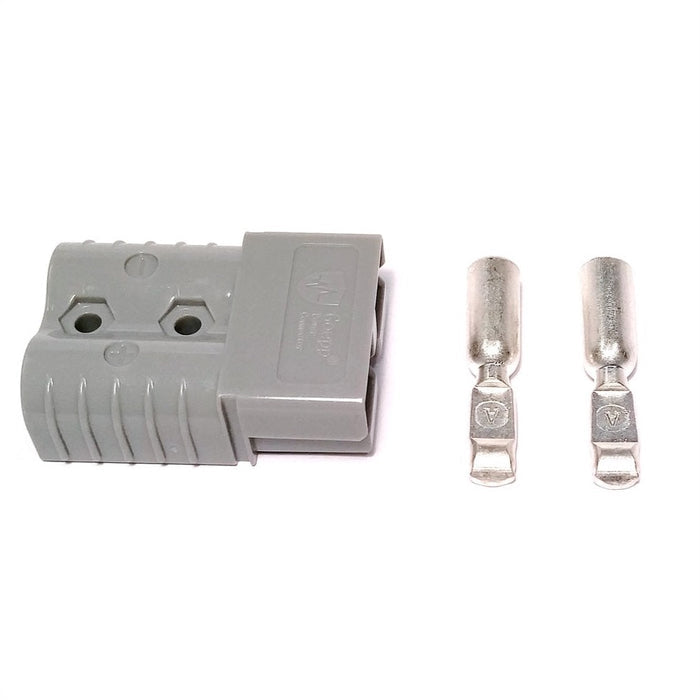

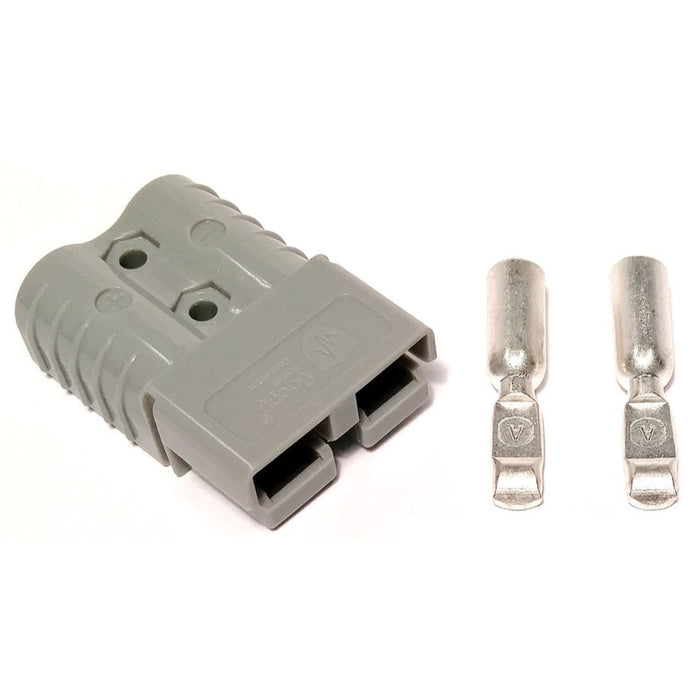

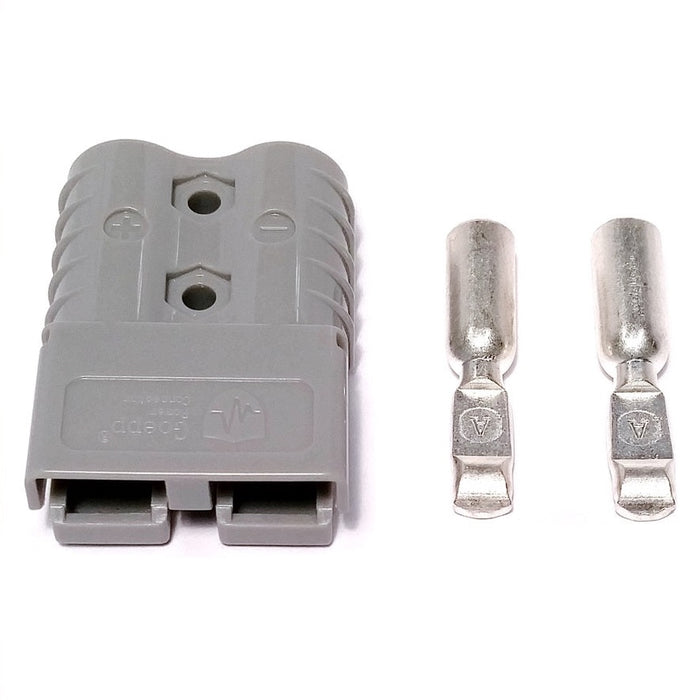

The Bioenno Power B-SB120 is a heavy-duty SB120 Grey Anderson Powerpole connector, rated for 120A at 600VDC. Designed for robust and high-current applications, this connector is perfect for demanding environments such as electric vehicles, marine systems, UPS communication power supplies, industrial machinery, and high-capacity charging circuits.

Manufactured with impact-resistant polycarbonate housing and silver-plated solid copper contacts, the SB120 ensures low contact resistance, superior conductivity, and exceptional durability even under harsh operating conditions.

< data-start="819" data-end="822">

Key Features

1. Performance and Durability

   • Rated Current: 120A

   • Rated Voltage: 600 VDC

   • 1 Piece Per Package

2. Material and Construction

   • Housing: Impact-resistant polycarbonate

   • Contacts: Silver-plated solid copper

   • Heat-treated flared barrels for secure cable connections

   • Self-cleaning contact design prevents corrosion and arcing

3. Application Versatility

   • Supports high-current quick-disconnects

   • Compatible with EVs, forklifts, marine equipment, industrial machines, UPS systems, and more

< data-start="1402" data-end="1405">

Important Notes

• Designed for both plug and socket configurations—pair using same-color connectors

• Not intended for low-amperage circuits

• Built to withstand high shock environments and frequent connect/disconnect use

< data-start="1642" data-end="1645">
